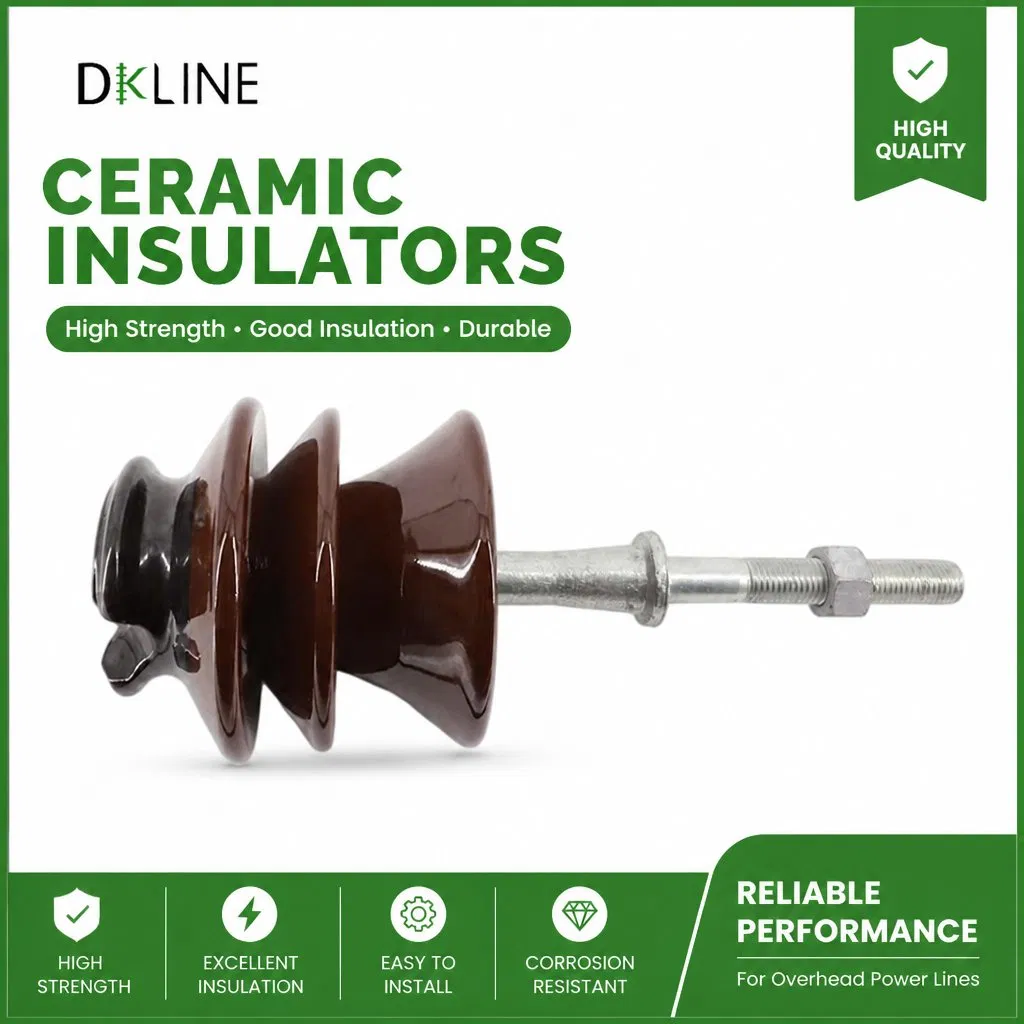

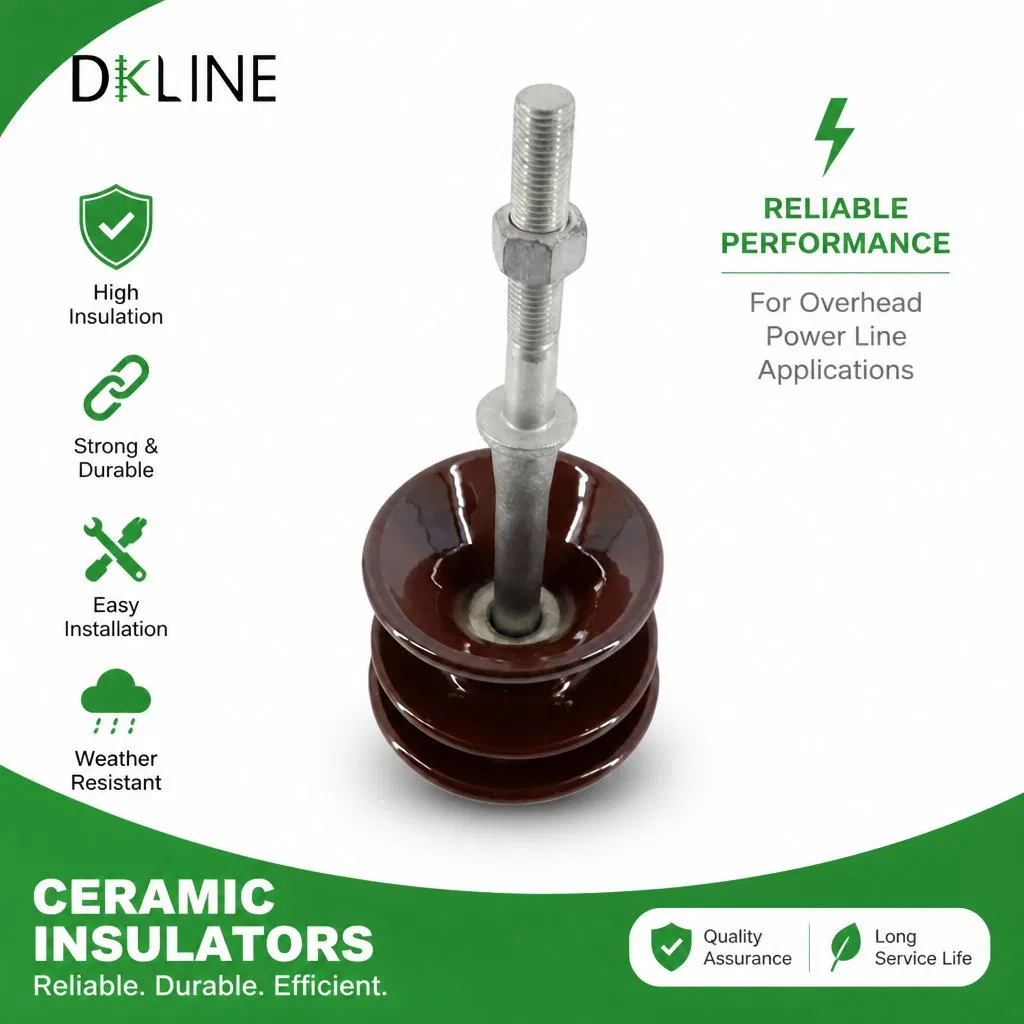

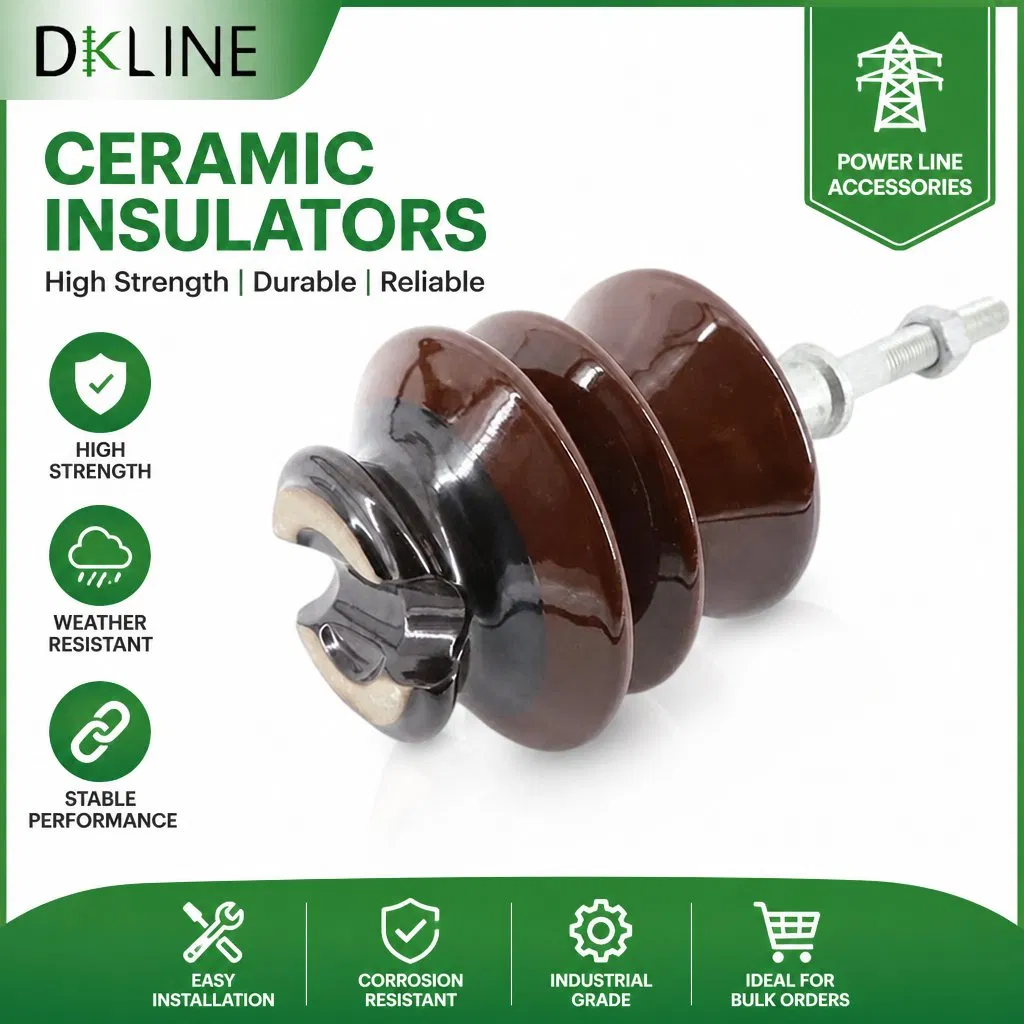

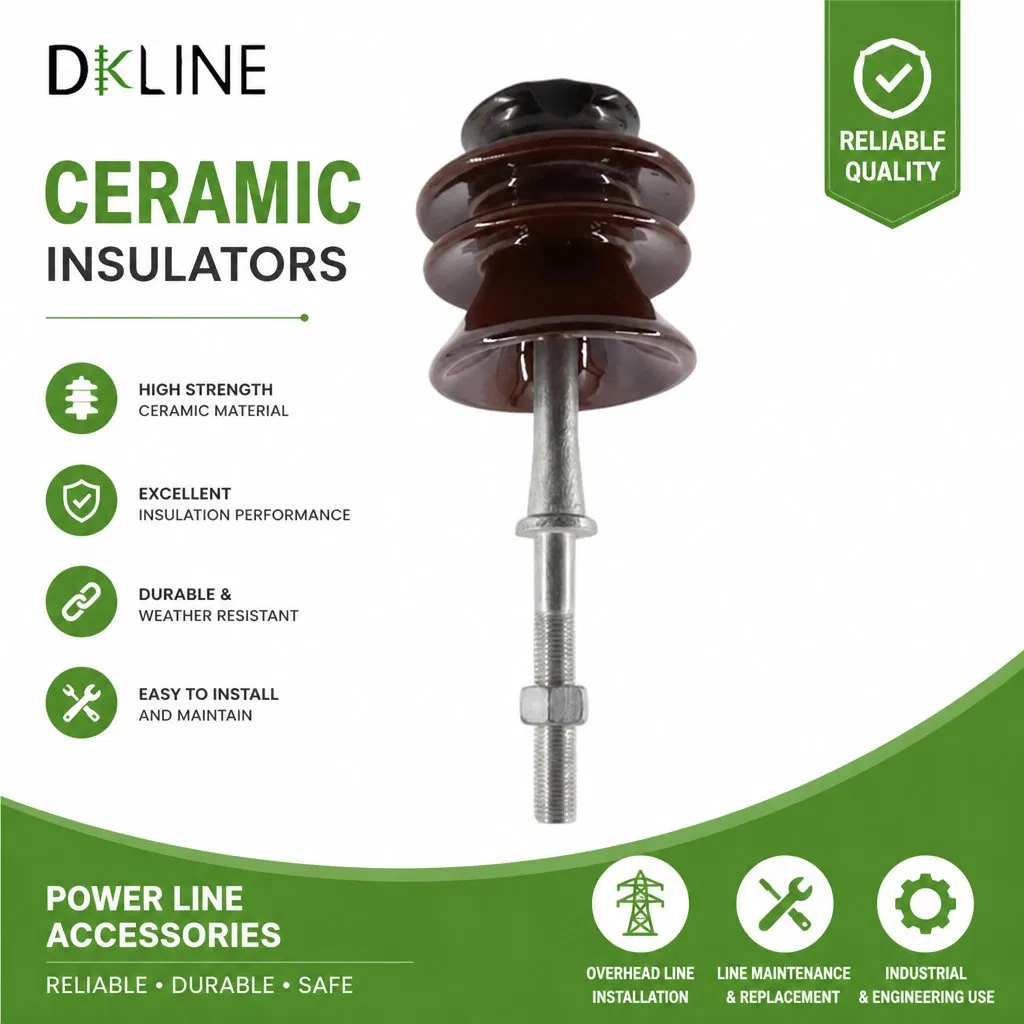

High-Quality Medium Voltage Pin Porcelain Insulator for Reliable Performance

Product Description

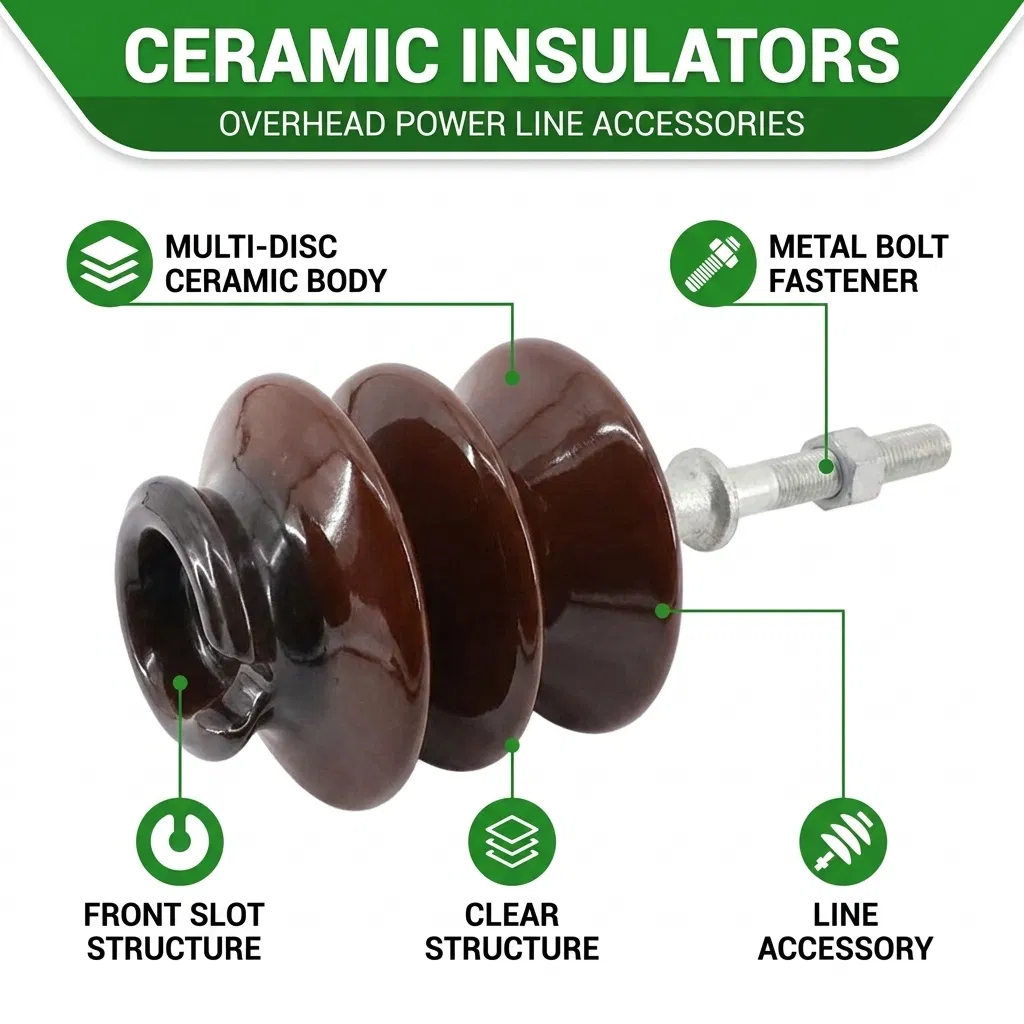

The pin-type insulators for high-voltage lines are mainly used to insulate and support the conductors in high-voltage overhead power transmission and transformation lines. They are classified into five grades according to the rated voltage: 6, 10, 15, 20 and 35KV. The pin-type insulators consist of porcelain pieces and steel feet (or threaded sleeves), and the porcelain pieces and steel feet (or threaded sleeves) are bonded together with a silicate cement adhesive. The surface of the porcelain pieces is white or brown, etc., and the surface of the steel feet is hot-dip galvanized.

Product Advantages

Triple sheds extend creepage distance, prevent pollution flashover in humid & dusty areas
High-temp hydrophobic brown glaze, self-cleaned by rain to cut maintenance
Fully hot-dip galvanized pin & nuts, anti-rust against salt fog and acid corrosion
Integrated wire groove, no extra clamps needed for fast installation
Monolithic sintered porcelain, high bending & impact resistance
Universal pin size, compatible with all standard pole crossarms

Application Scenarios

Insulation support for medium voltage overhead power lines
Outdoor pole projects for PV and wind power transmission
Urban grid renovation and rural power infrastructure construction
Corrosion-resistant solution for coastal, mining and chemical industrial areas
High voltage overhead wiring for factories and farm irrigation lines

High-Quality Medium Voltage Pin Porcelain Insulator

Specification

Type		P-11-Y	P-15-Y	P-22-Y	P-33-Y	PW-15-Y	PW-22-Y
Creepage distance (mm)		240	295	432	630	673	673
Cantilever strength (kN)		11	11	11	13.8	11	11
Withstand voltage	One minute wet power frequency (kV)	45	50	70	90	70	70
Withstand voltage	Dry impulse withstand voltage (kV)	80	95	124	170	125	125
Power frequency puncture voltage (kV)		150	450	200	210	200	200
Radio influence voltage	Test voltage to ground (kV)	15	15	22	30	30	30
Radio influence voltage	Max RIV at 1MHz μV	800/100	800/100	12000/100	16000/100	16000/100	16000/100
Used spindle		Small steel head		Large steel head

OEM & ODM Custom Service

Porcelain customization: Adjustable shed size, brown/white glaze optional
Pin customization: Custom pin length & diameter for various crossarms
Logo engraving: Print client LOGO & model on porcelain or pin
Packaging customization: Neutral cartons, fumigated wooden cases, private brand package
One-stop service: Fast sampling, bulk delivery, complete matching hardware supply

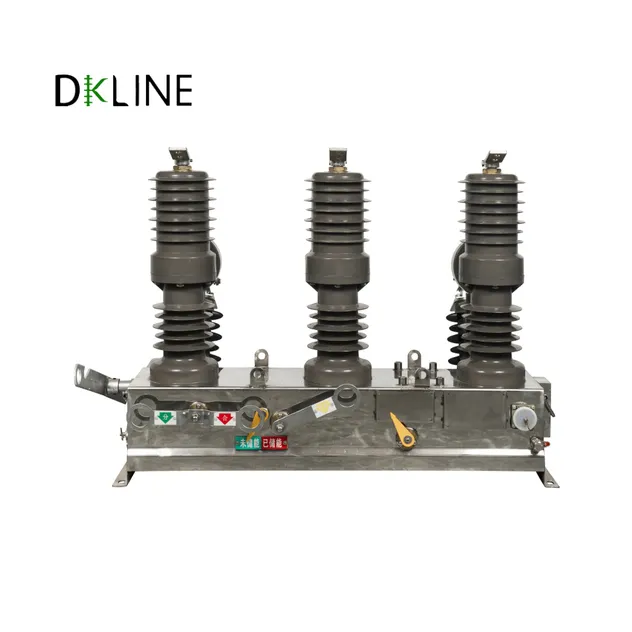

SF6 Circuit Breaker

Works together with pin-type insulators to provide reliable insulation and switching protection for medium voltage power systems.

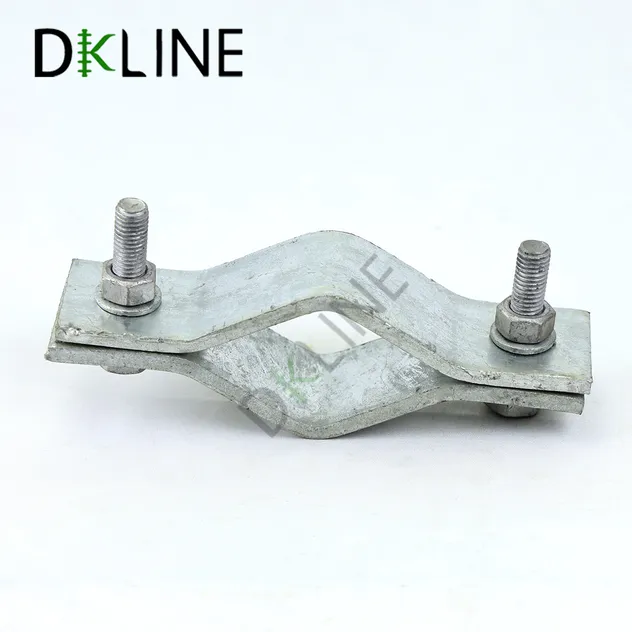

Pole Clamp

Enables secure mounting of insulators and electrical fittings on utility poles.

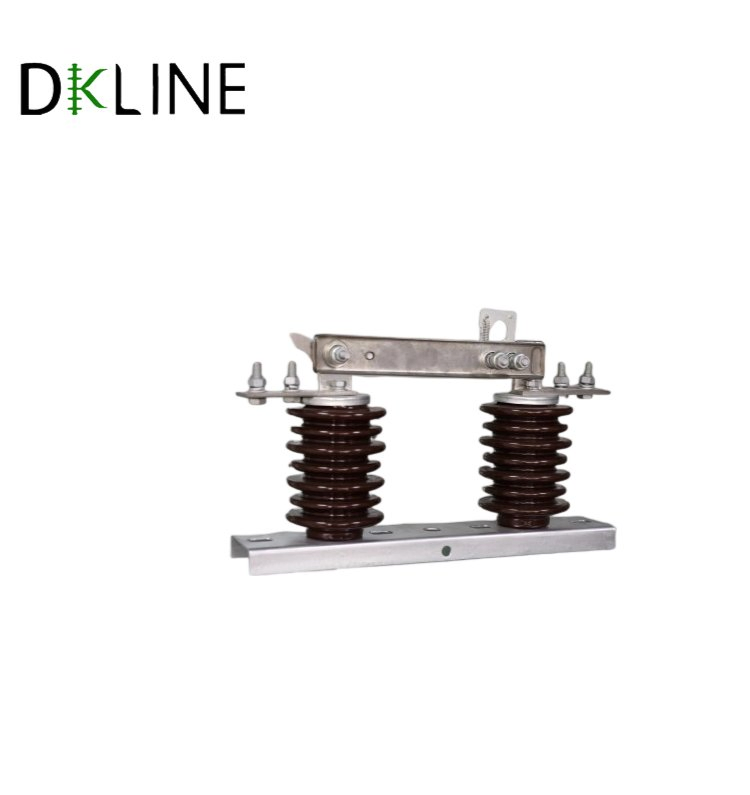

Disconnect Switch

Combined with pin-type insulators to ensure safe isolation and maintenance operation of power networks.

Company Profile

About us

We are a professional manufacturer of power systems and transmission and distribution line materials, providing diverse solutions for the global energy sector.

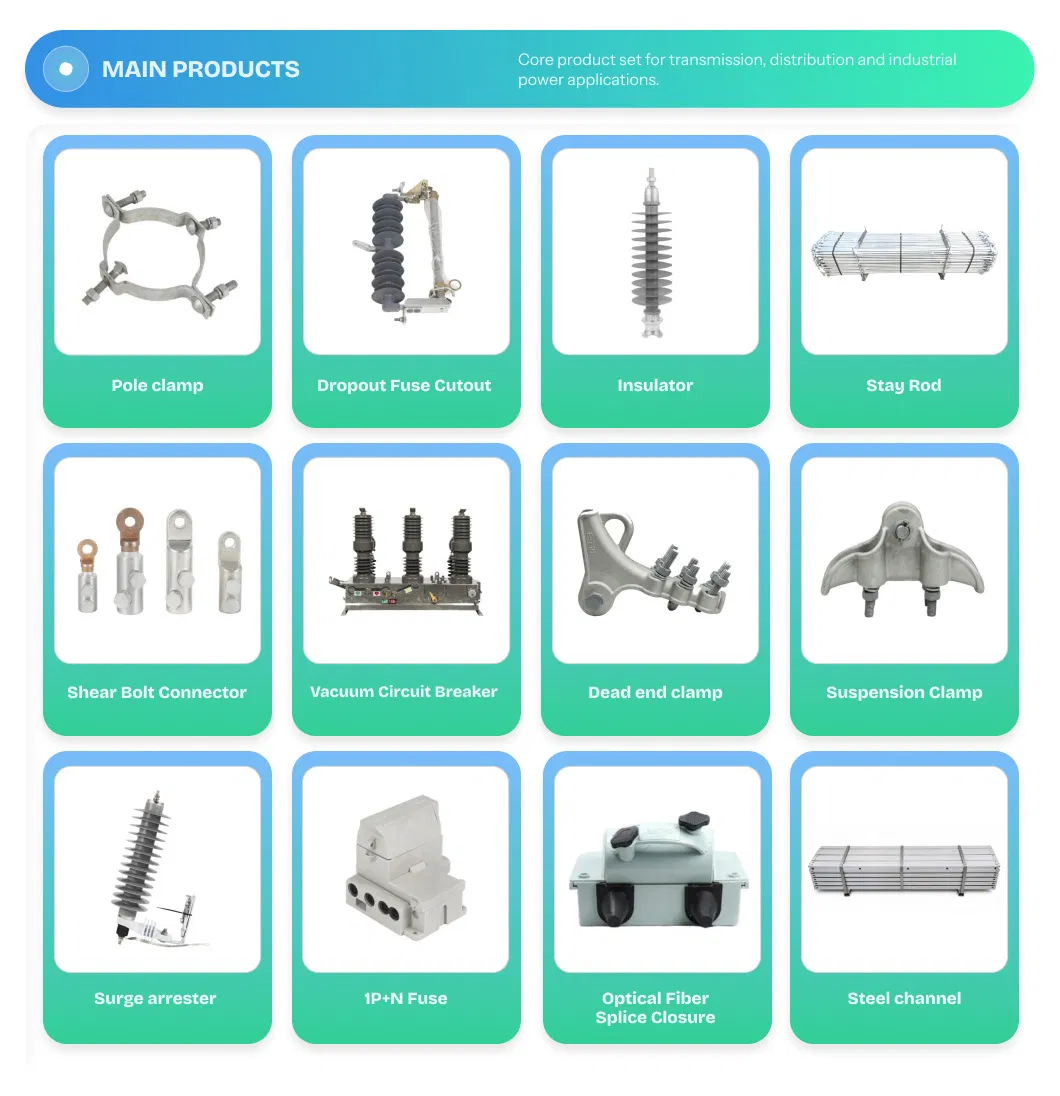

Our product includes Power Systems, such as Reclosers, Air Break Switches, Load Break Switches, SF6 and Vacuum Circuit Breakers, and Current Transformers (CTs) and Voltage Transformers (VTs); Insulators & Surge Protection, including Insulators, Surge Arresters, and Drop-out Fuses; Electric Power Fittings, such as Overhead Line Fittings, Stay Materials, Steel Structures, and Earthing Materials; and Enclosures & Switchgears, offering a complete range of solutions for transmission, distribution, and industrial power applications.
